Level fillers for still products

A wide selection of filling machines featuring level filling technology, particularly suitable to fill still beverage products.

This portfolio includes a various portfolio of machines featuring a speed which goes up to 84.000 cph. This range goes from machineries which can be equipped with one feed manifold and another one for recirculation, which should always be full to guarantee a continuous flow, up to automatic fillers’ range suitable for filling hot liquid products only with gravity system.

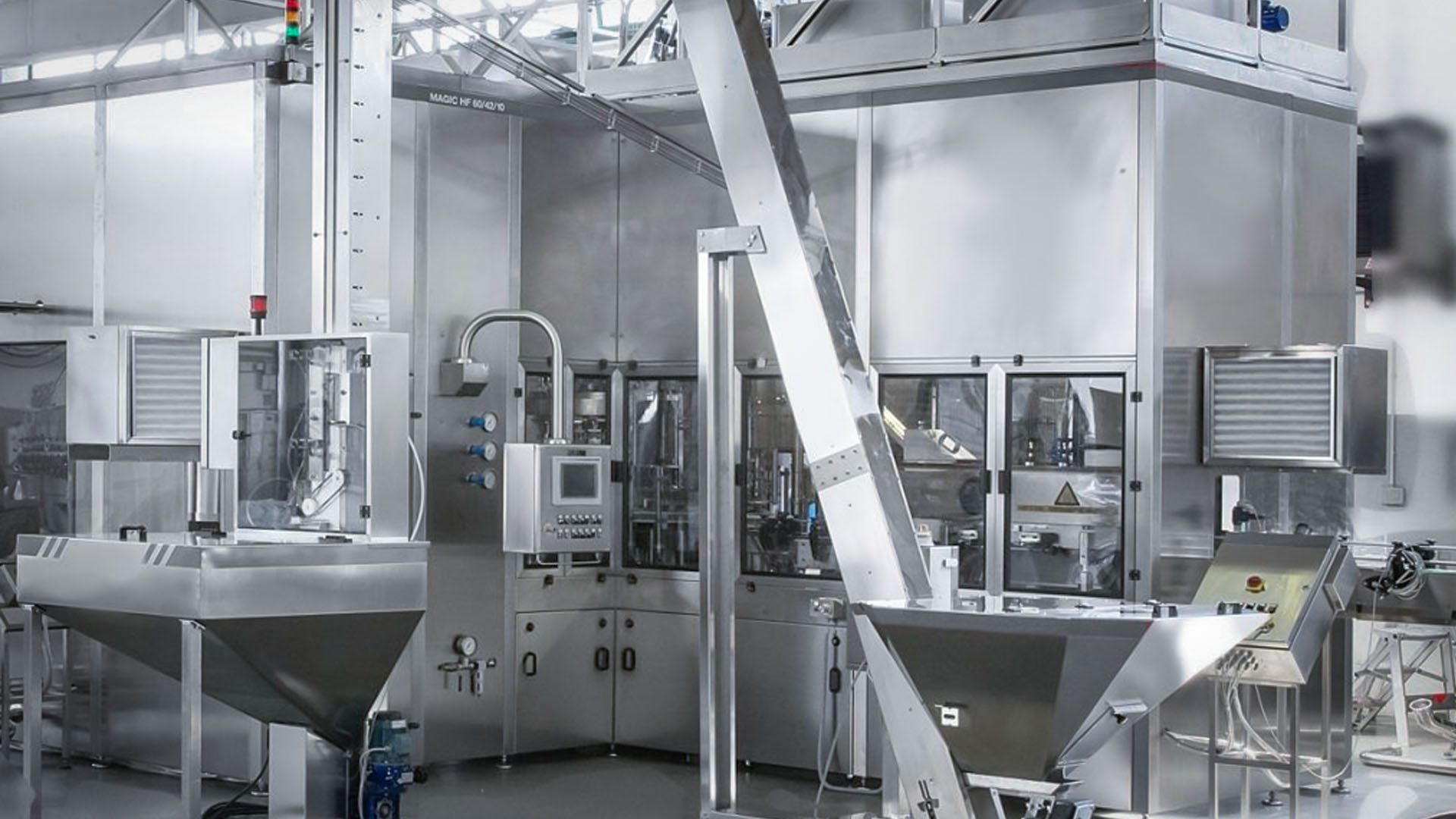

Magic HF

Speed range from 2.000 up to 65.000 BPH. Hot filling system for carbonated drinks.
Play video
Magic HF

CFT Group’s hot-filling system is the result of a highly performant design, developed by its R&D after many years of experience in the Beverage Industry. These fillers are heavy-duty constructed and are manufactured with high quality standards ensuring consistent and precise filling.

Magic HF

Products: still drinks; vitamin waters; fruit and vegetable juices; fruit cocktails and RTD; ice tea: isotonic; sport and energy drinks

Formats: pet bottles; glass bottles

Benefits:



  • speed from 2.000 to 65.000 bph.
  • Constant filling accuracy and temperature in all working conditions.
  • 4 blocks unit available, suitable to pre-dose sacs or diced fruit
  • high flexibility in working by recipe through an operator-friendly touchscreen panel
Magic HF

CFT Group’s full range of solutions for the Beverage Industry.

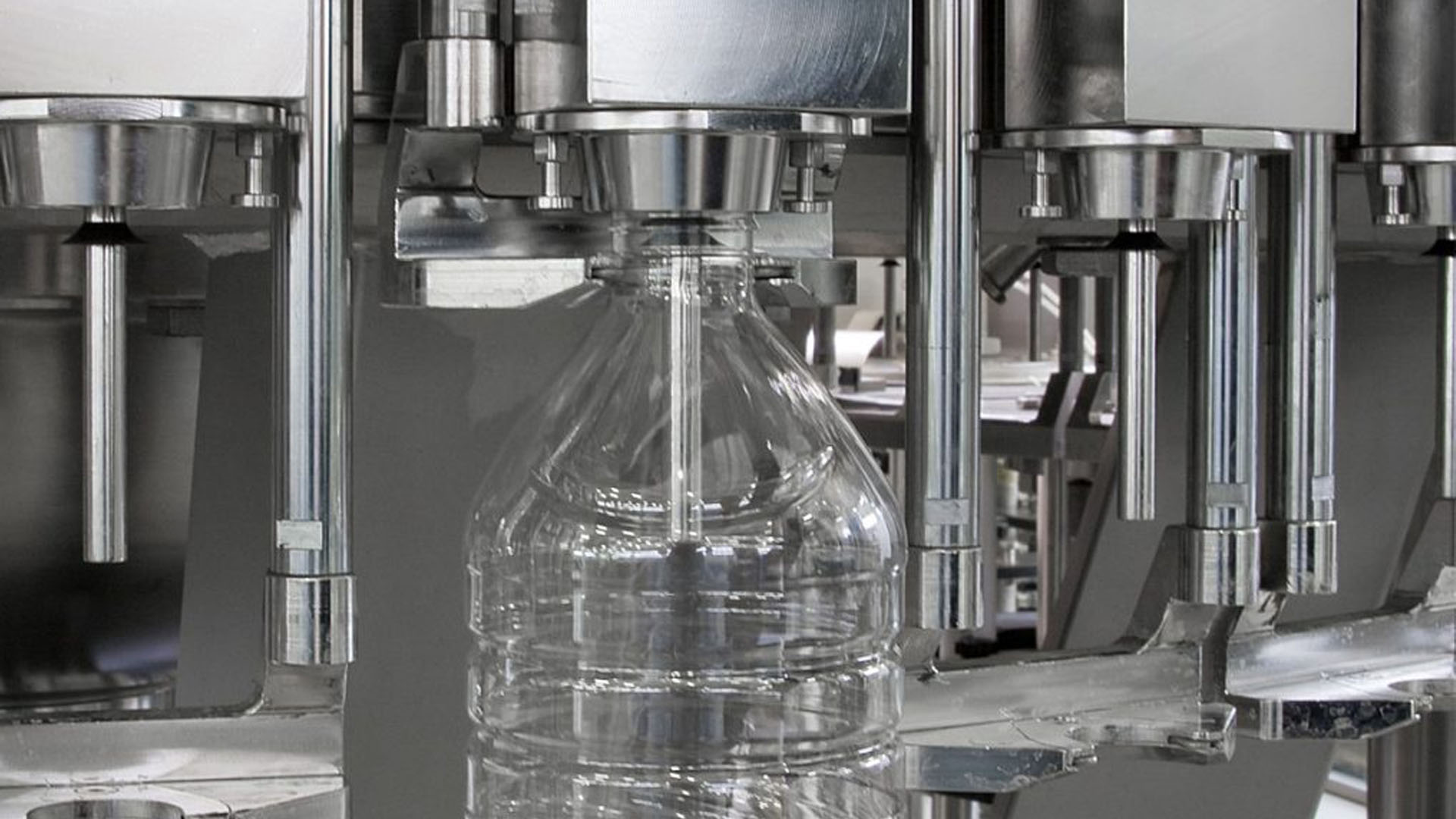

Magic PET RS/SC

Speed from 3.000 up to 70.000 BPH. MAGIC PET RS/SC is part of the CFT “Magic” range based on gravity filling technology, suitable to fill still beverages in PET bottles.
Play video
Magic PET RS/SC

Premium technology for the medium/high capacity lines (from 3.000 up to 70.000 bph). MAGIC PET RS/SC can be provided as filler/capper monoblock or rinser/filler/capper triblock within a massive modular design range, which ensures perfect dimensioning for every type of application, both in terms of correct number of rinsing grippers and in the terms of precise number of capping heads.

Magic PET RS/SC

Products: still drinks, vitamin waters, fruit and vegetable juices, fruit cocktails and RTD, ice teas, isotonic, sport and energy drinks.

Formats: glass bottles, PET bottles

Benefits:



  • Patented filling valve opening (no mechanical frictions).
  • Ultra-fast changeover (product/bottle)design.
  • Customer friendly operator touch panel with auto diagnostic software.
  • Quick and easy maintenance on neck handling lifting system through a patented handling
  • Baseless construction for easy maintenance (starting from 50 valves sizing).
Magic PET RS/SC

CFT Group’s automatic PET line.

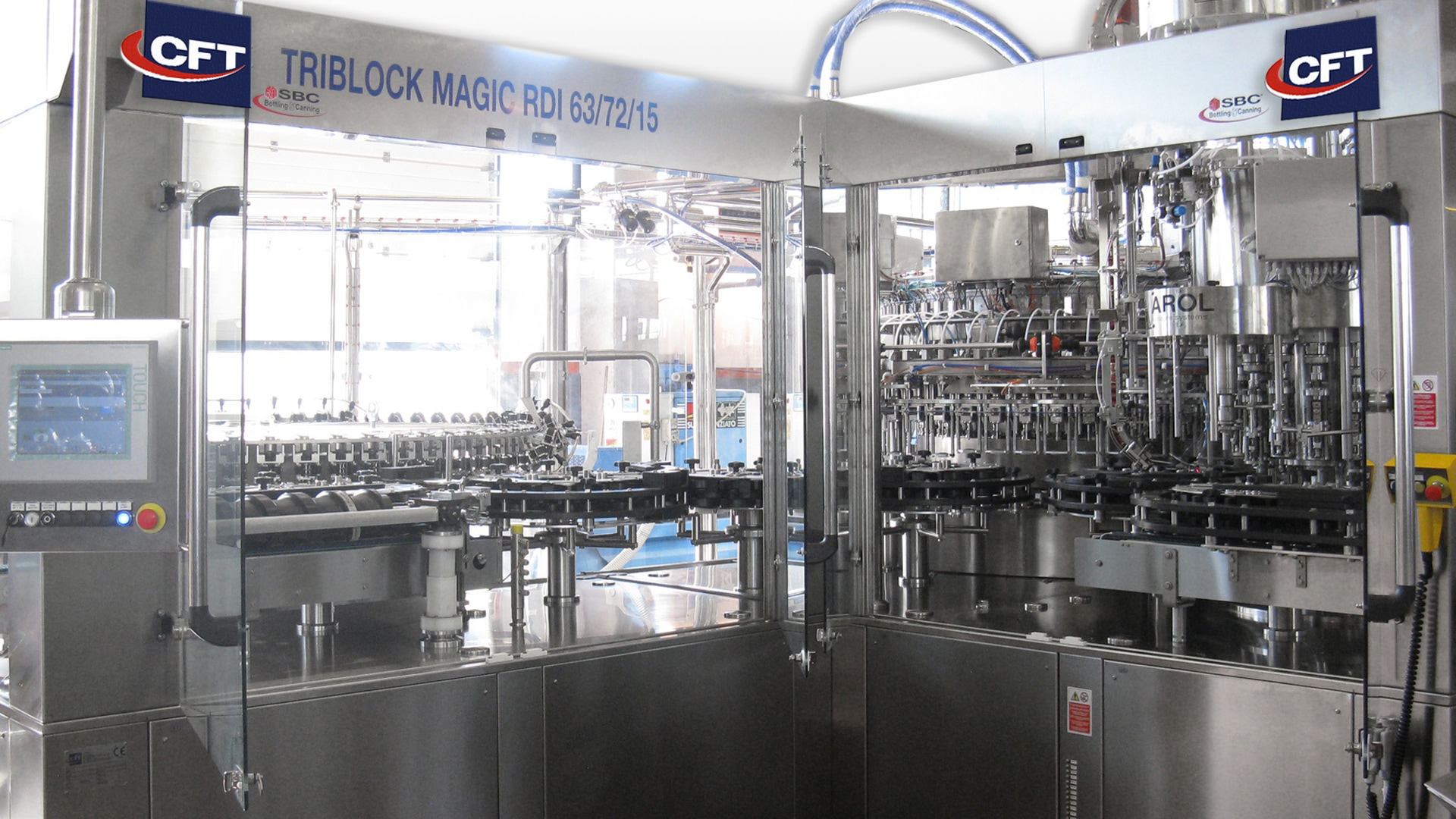

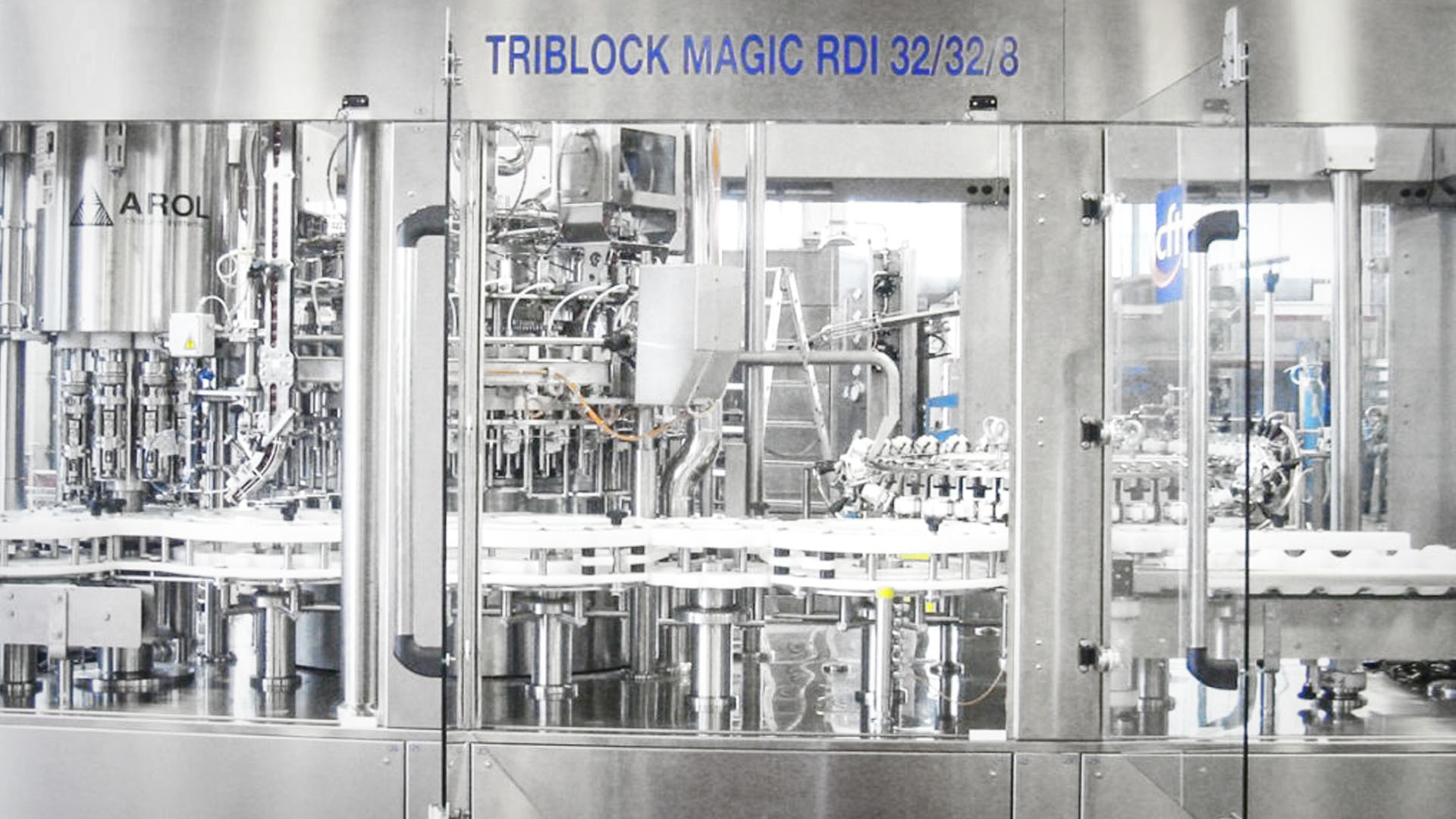

Magic RDI

Speed from 1.500 up to 70.000 BPH. Electronic filling machine for liquors and spirits.
Play video
Magic RDI

MAGIC RDI is part of the CFT “Magic” range based on low vacuum filling technology, suitable to fill still wine, liquors and spirits only in glass bottles. MAGIC RDI represents CFT Group’s premium technology for medium/high capacity lines (up to 70.000 bph).

Magic RDI

Products: still wine, liquors, spirits.

Formats: glass bottles, PET bottles.

Benefits:



  • Very accurate fill height (+/- 1 mm)
  • SPEED FROM 1.500 TO 70.000 BPH
  • super fast changeover without level pipes replacement
Magic RDI

CFT Group’s full range of solutions for the Beverage Industry.

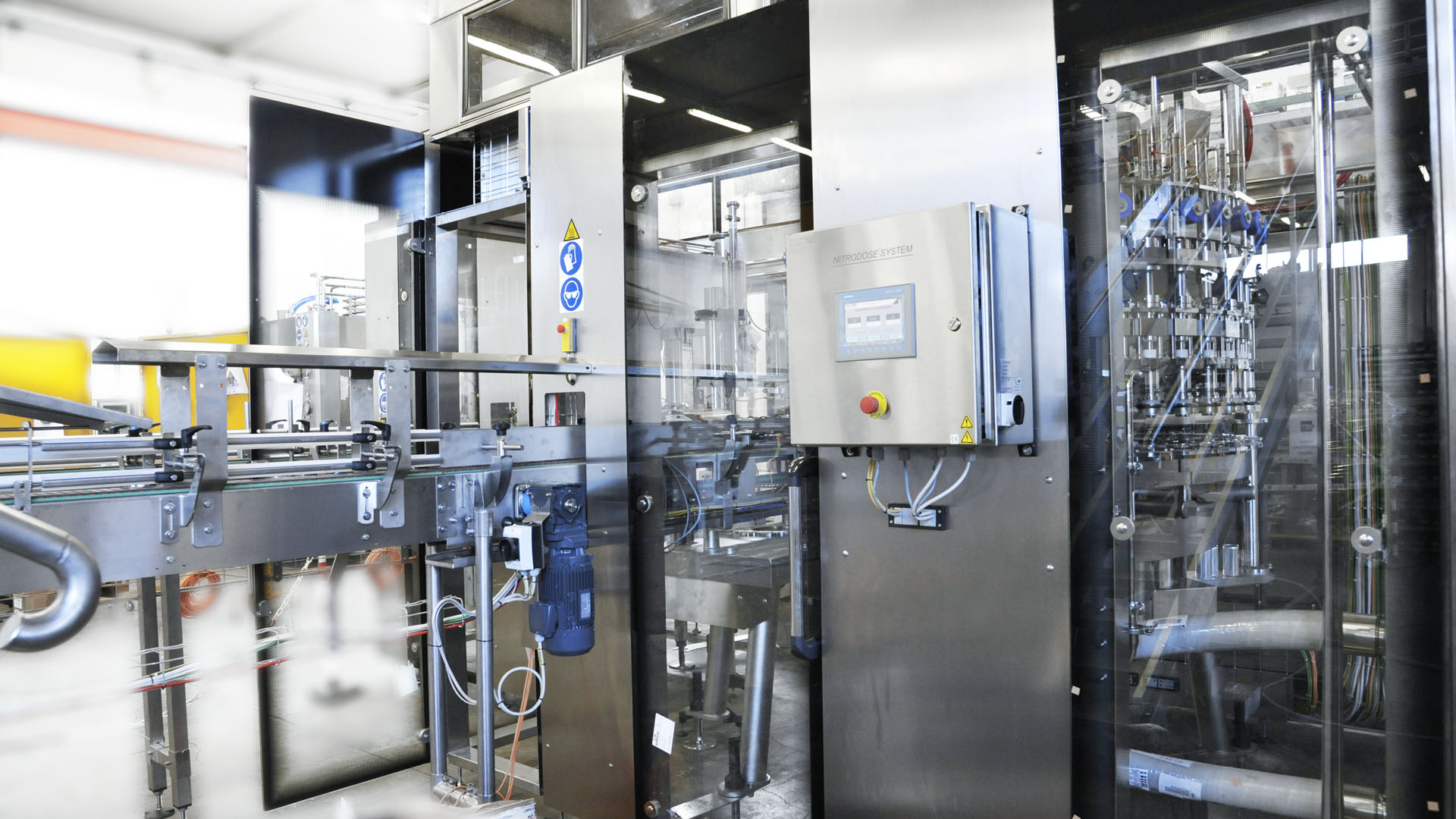

Magic Can HF

Speed range from 4.000 up to 84.000 CPH. Level filler for still products.
Play video
Magic Can HF

This solution is not equipped with a traditional product bowl but with one feed manifold and one for recirculation, which should always be full to guarantee a continuous flow. The system is controlled by the exchanger through signals from the appropriate control apparatus, which sends product for filling only if they are at the correct temperature, otherwise sends it back to the exchanger.

Magic Can HF

PRODUCTS: still products

FORMATS: cans

BENEFITS:



  • Speed up to 84.000 cph
  • equipped with one field manifold and one for recirculation, to guarantee a continuos flow
  • product filling only when the correct temperature is reached
Magic Can HF

CFT Group’s full range of solutions for the Beverage Industry.

Magic Gravity

Speed up to 72.000 CPH. Automatic fillers’ range suitable for filling hot liquid products only with gravity system.
Play video
Magic Gravity

The gravity filler is an automatic machine, suitable for filling hot liquid products.

Magic Gravity

PRODUCTS: still drinks, clear juices, tea

FORMATS: cans

BENEFITS:



  • Base in thick carbon steel covered in AISI 304 stainless steel.
  • All the supports and columns fastened on the base are free of any visible screw heads and are suitably contoured to prevent pooling of water or product.
  • Container feed belt in satin-finished AISI 304 stainless steel.
  • Synchronization screw featuring quick change-over.
  • Rotating plate holder carousel in thick AISI 304 stainless steel with perimetral labyrinth.
  • Centralized lubrication.
  • Safety guards in tubular steel with plastic doors.
  • Power panel in stainless steel.
Magic Gravity

CFT Group’s full range of solutions for the Beverage Industry.
